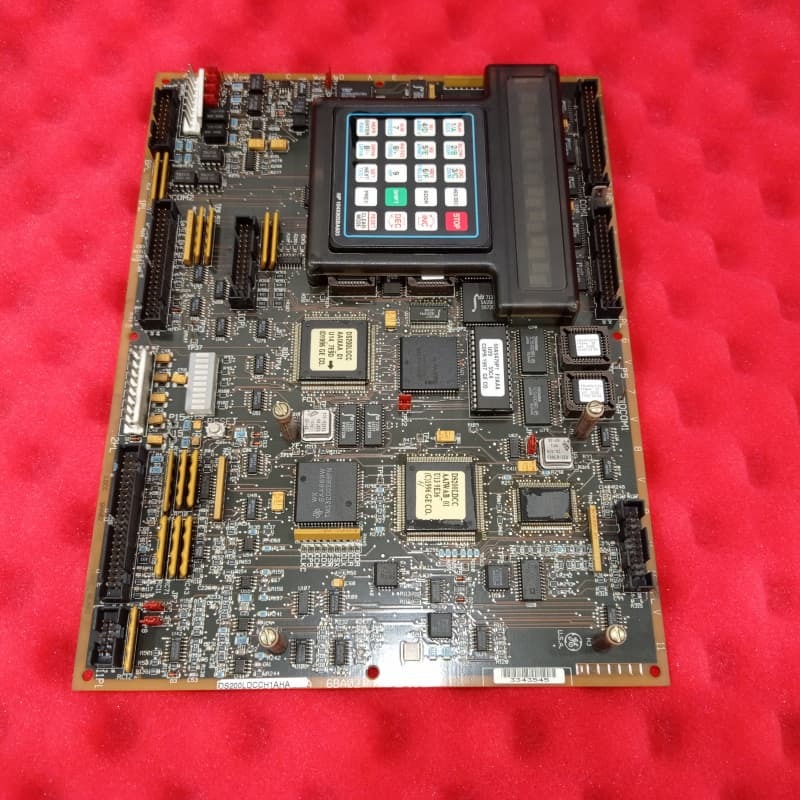

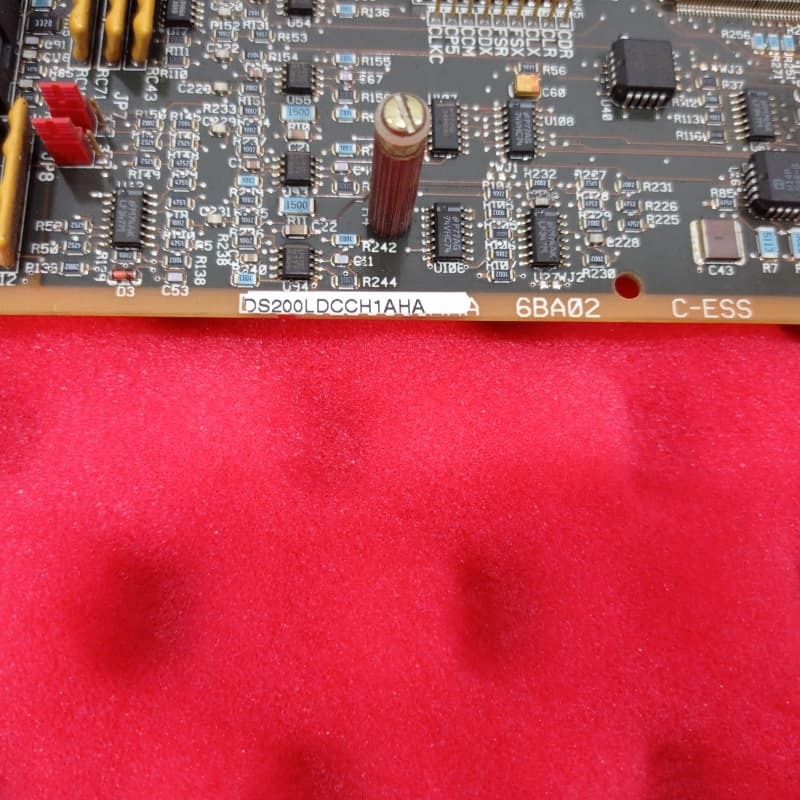

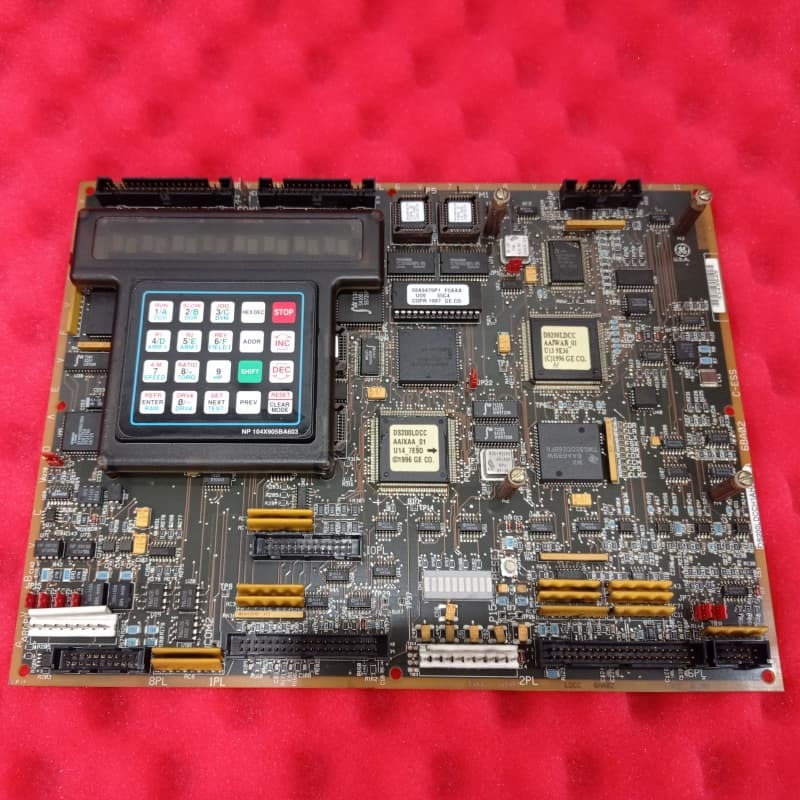

GE DS200LDCCH1AGA Drive Control LAN Board 330mm x 200mm

GE DS200LDCCH1AGA Drive Control/LAN Communications Board

Product Details:

The GE DS200LDCCH1AGA is a Drive Control & LAN Communications Board belonging to GE’s Mark V series—one of the final Mark iterations to integrate GE’s patented Speedtronic technology. It serves as a replacement board compatible with GE’s DIRECTO-MATIC 2000 drives and exciters, delivering drive control, I/O management, and LAN communication functions. As a revised variant of the original DS200LDCCH1 parent board, it incorporates three significant product updates to enhance performance.

Physically, it features four onboard microprocessors: LAN Control Processor, Drive Control Processor, Motor Control Processor, and Co-Motor Processor. It also includes an alphanumeric keyboard, six factory-programmable flash PROMs, a RESET button, and an EEPROM. Shipping uses static-resistant bags, and installation requires following manufacturer parameters and manual wiring guides.

Key Features:
Mark V Speedtronic Legacy: Integrates GE’s iconic Speedtronic technology, ensuring compatibility with legacy DIRECTO-MATIC 2000 drives/exciters and reliable control for turbine/drive systems.

Dual Core: Control + Communications---Combines drive/I/O control with LAN communication, centralizing critical system functions in one board.

Quad-Processor Power: Four specialized microprocessors divide tasks to optimize efficiency—handling bus communication, I/O processing, and complex calculations.

Field-Configurable Storage: Six flash PROMs and EEPROM U9 enable flexible configuration adjustments without replacing the entire board.

User-Friendly Diagnostics: Alphanumeric keyboard for programming and RESET button for fault resolution simplify on-site maintenance and troubleshooting.
