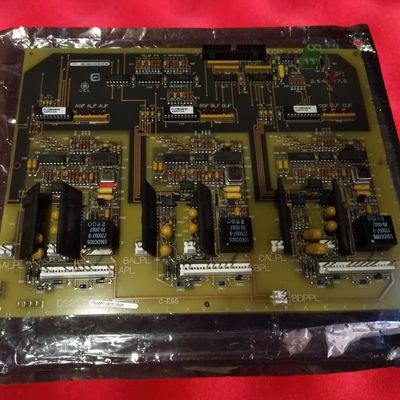

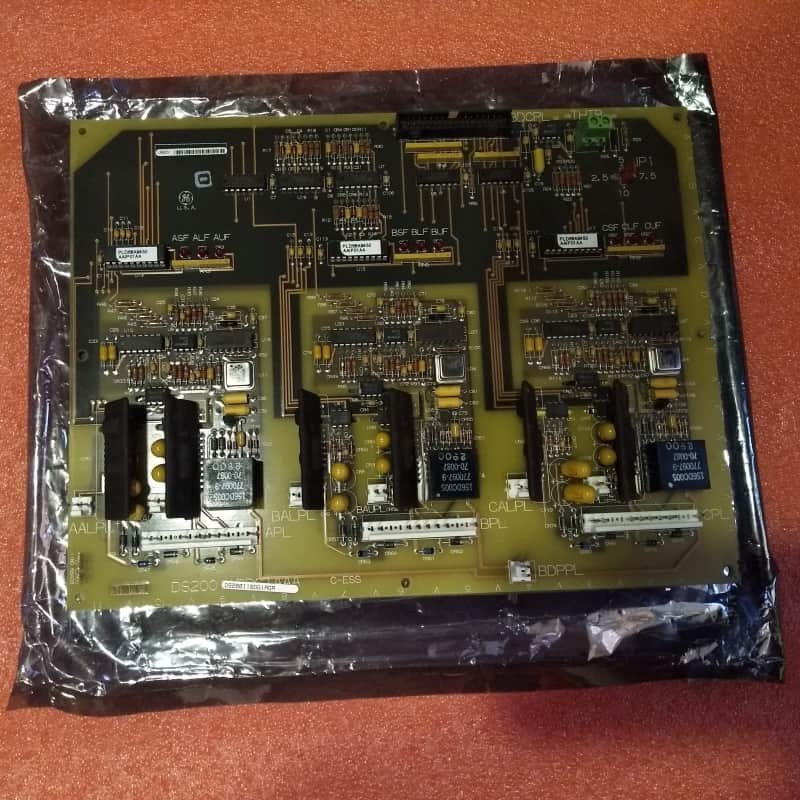

GE DS200IIBDG1ADA IGBT Gate Driver Board 330mm x 200mm Mark V

The GE DS200IIBDG1ADA is an IGBT (Insulated Gate Bipolar Transistor) Driver Board designed for drive control systems, specifically GE's Mark V Series. This revised version of the parent DS200IIBDG1 board features three significant product updates.

The board delivers precise control signals to IGBT gate terminals, synchronizing with system needs to regulate switching frequency and duty cycle. It also monitors key parameters including temperature, voltage, and current for safe, efficient IGBT operation.

• Dimensions: 330mm x 200mm
• 34-pin connector for ribbon cable connection

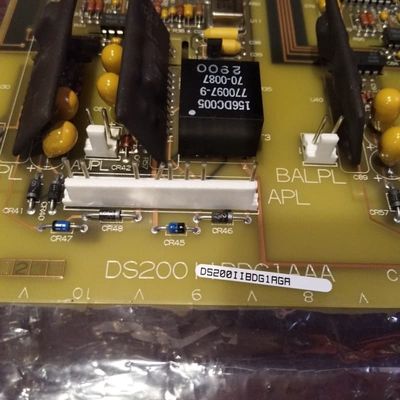

• Three 8-pin connectors labeled APL, BPL, CPL for system communication
• Nine red indicator LEDs for status monitoring
• Thick standard PCB coating for hardware protection

• Precise IGBT Control: Generates PWM signals to regulate IGBT switching, optimizing efficiency
• Parameter Monitoring: Tracks temperature, voltage, and current to prevent IGBT damage
• Structured Connectivity: Multiple connectors enable secure system integration
• Visual Status Indicators: Red LEDs provide clear operational feedback
• Protective Design: Thick PCB coating enhances durability in industrial environments
