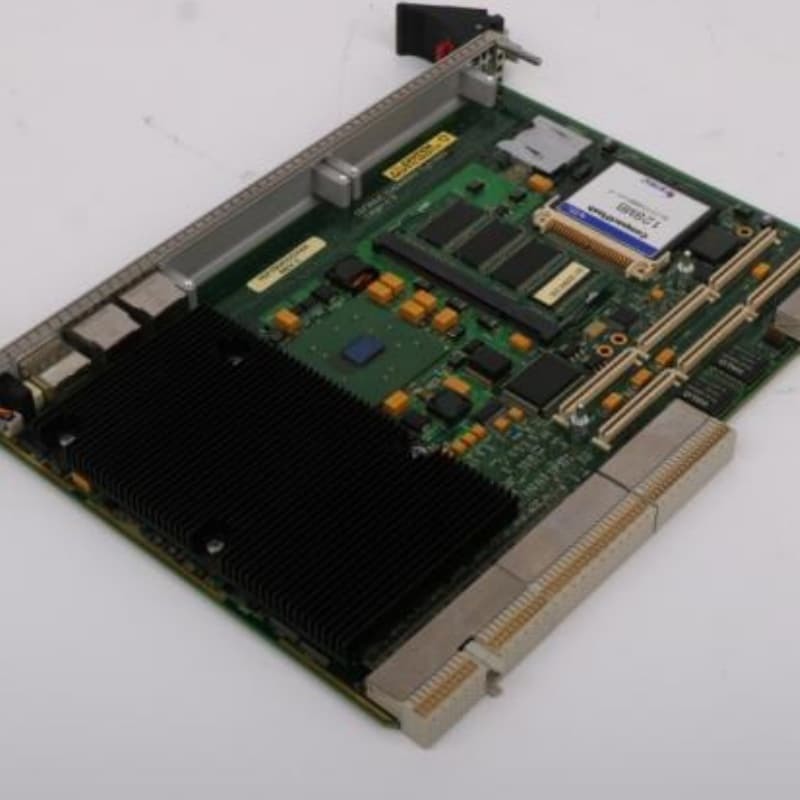

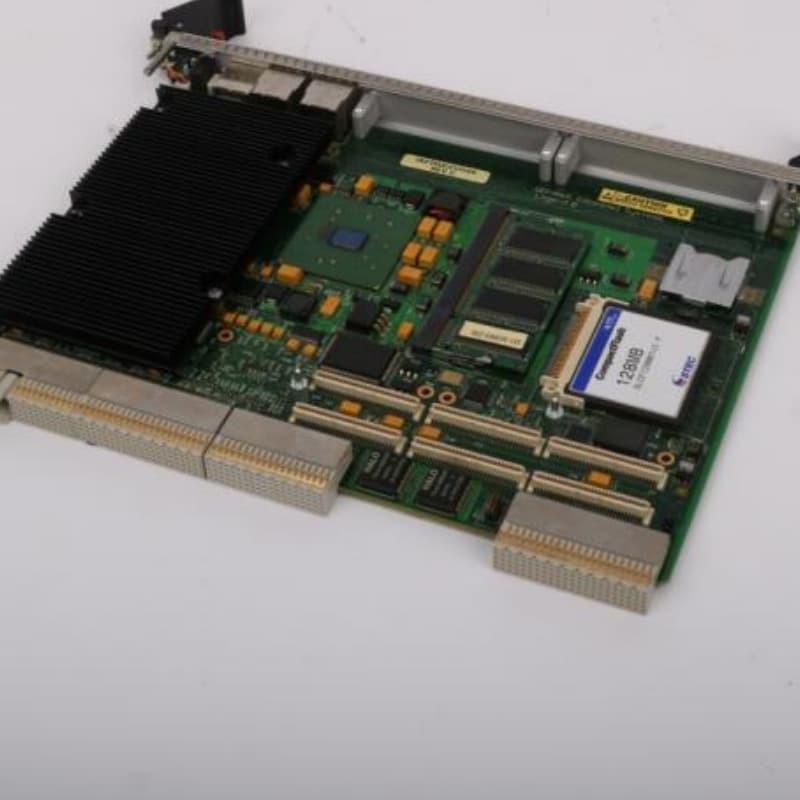

GE IS215UCCCH4A VME Controller Board 100mm x 200mm Mark VIe

The GE IS215UCCCH4A is a Controller Card belonging to GE’s Mark VIe Series, designed for gas turbine control systems.Powered by a 1.6 GHz Intel Pentium M Processor and running the QNX Neutrino operating system, it delivers reliable processing for turbine control tasks.

Physically, its faceplate features six Ethernet-style ports and diagnostic LEDs. The card detects system errors during startup, download, and normal operation; diagnostic alarms are recorded historically on WorkstationST and can be displayed/reset via ToolboxST. It requires precise DC power inputs: +5V DC, +3.3V DC, and +12V DC to ensure stable performance.

Powerful Processing Core: Equipped with a 1.6 GHz Intel Pentium M Processor and QNX Neutrino OS, plus 256 MB DRAM/128 MB flash memory, enabling efficient data processing and real-time control for gas turbine systems.

Modular & Compact Design: Functions as a 3U compact PCI/VME board with an integrated IS200 EPMC daughter board, balancing modularity for maintenance and compactness for space-constrained control cabinets.

Ethernet Connectivity: Six labeled Ethernet ports on the faceplate support dedicated network links, ensuring seamless communication with other Mark VIe components.

Diagnostic Capabilities: Detects system errors across operational phases; alarms are logged on WorkstationST and manageable via ToolboxST, simplifying troubleshooting and reducing downtime.

Precise Power Requirements: Operates on regulated +5V, +3.3V, and +12V DC inputs with tight voltage tolerances, ensuring consistent performance in industrial environments where power fluctuations are common.
