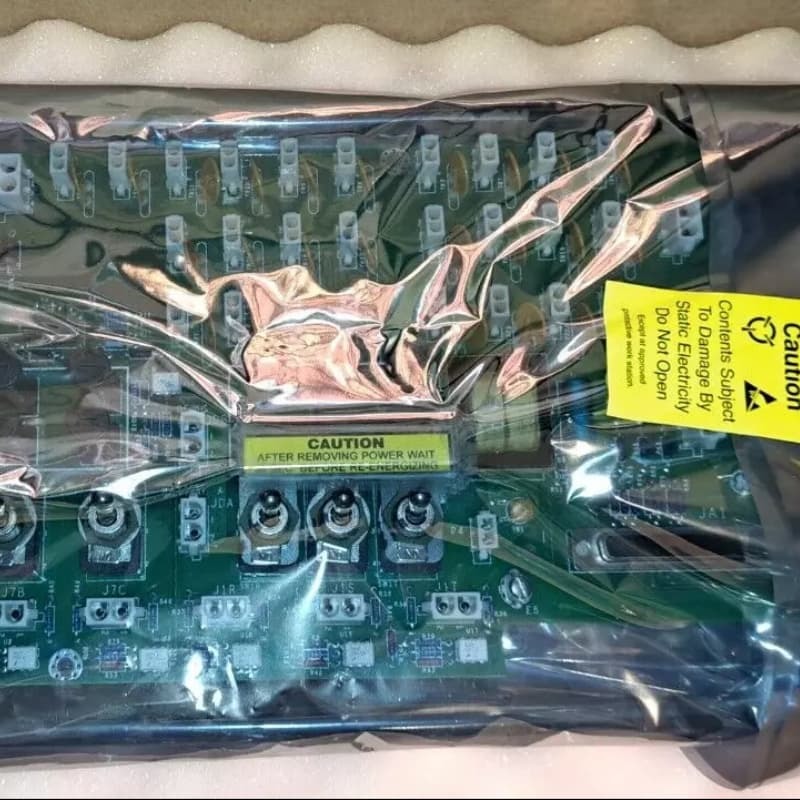

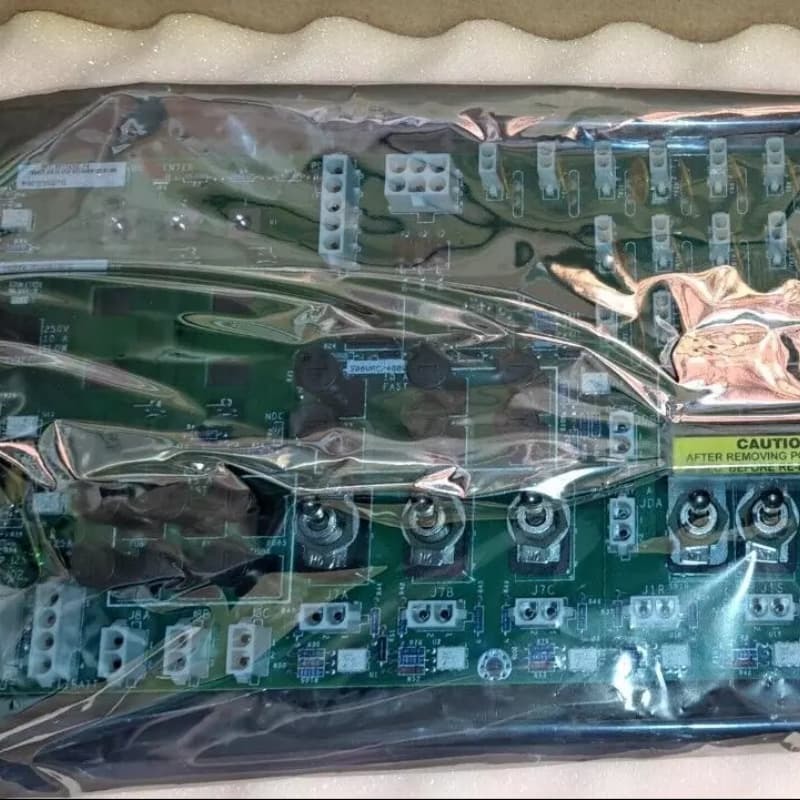

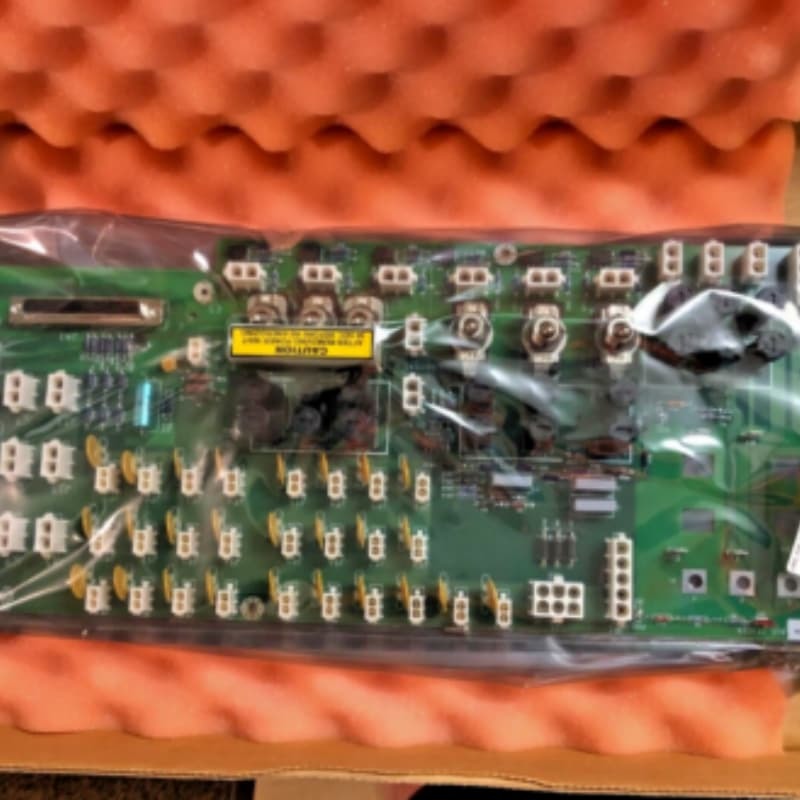

GE IS200JPDCG1ACB-W01 Power Distribution Module Mark VI

The GE IS200JPDCG1ACB-W01 is a Power Distribution Module in GE's Mark VIe series, designed to centralize power distribution for turbine control systems. It integrates input/output functions to deliver multiple voltage levels—125V DC, 115/230V AC, and 28V DC—to connected boards, streamlining power management in industrial setups.

Mounted vertically with the 115/230V AC input (JAC) at the bottom, it uses four screws for secure attachment, typically positioned low in control cabinets to enhance grounding. A 6.75 × 19.0-inch board on a steel base houses diodes and resistors, with voltages logically arranged for safety and accessibility.

• Multi-Voltage Distribution: Delivers 28V DC, 125V DC, and 115/230V AC to system boards, eliminating the need for multiple discrete power modules.
• Logical Voltage Layout: Voltages increase from top to bottom, enhancing safety and ease of maintenance.
• Diagnostic Capabilities: Integrates feedback signals for monitoring voltage differentials, AC input, and battery/multiplexed inputs.
• Flexible Integration: Supports optional PPDA I/O packs via JA1, secured with angle brackets.
• Industrial Design: Steel base and rugged construction ensure durability in demanding environments.
• Mark VIe Compatibility: Seamlessly integrates into the series' architecture for reliable power delivery.
