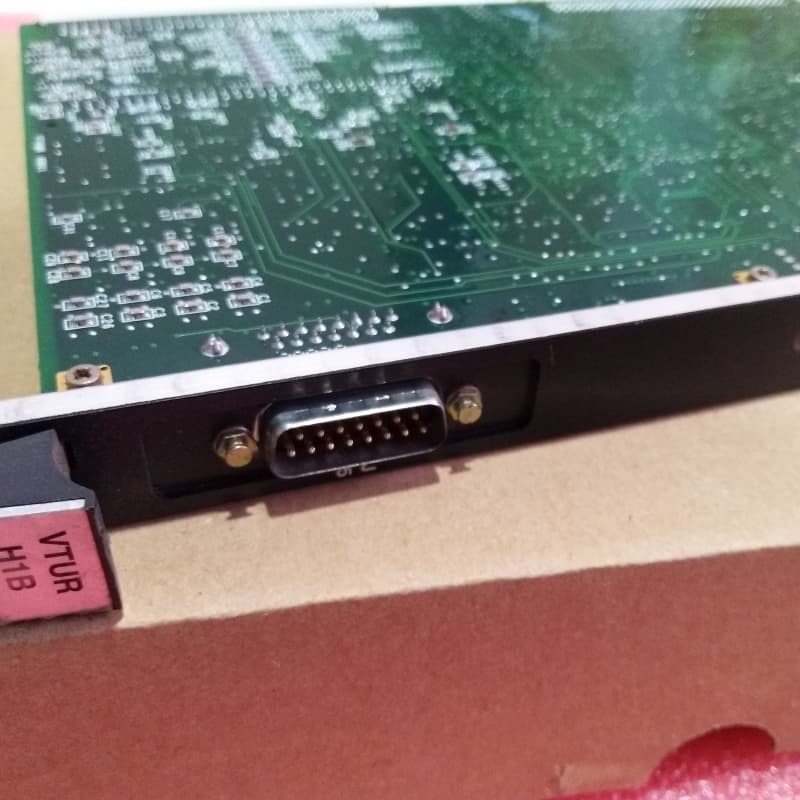

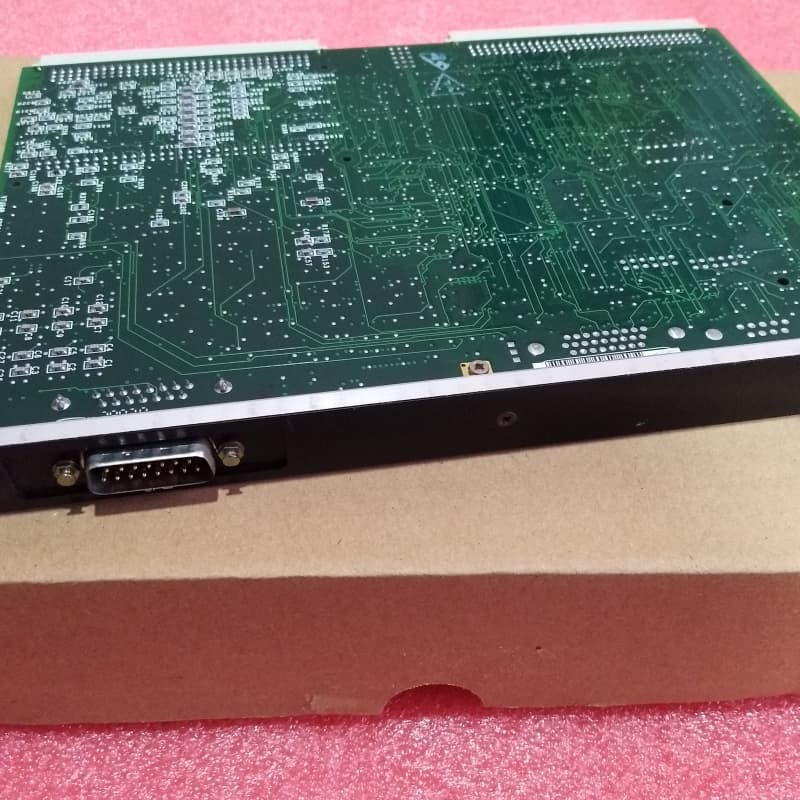

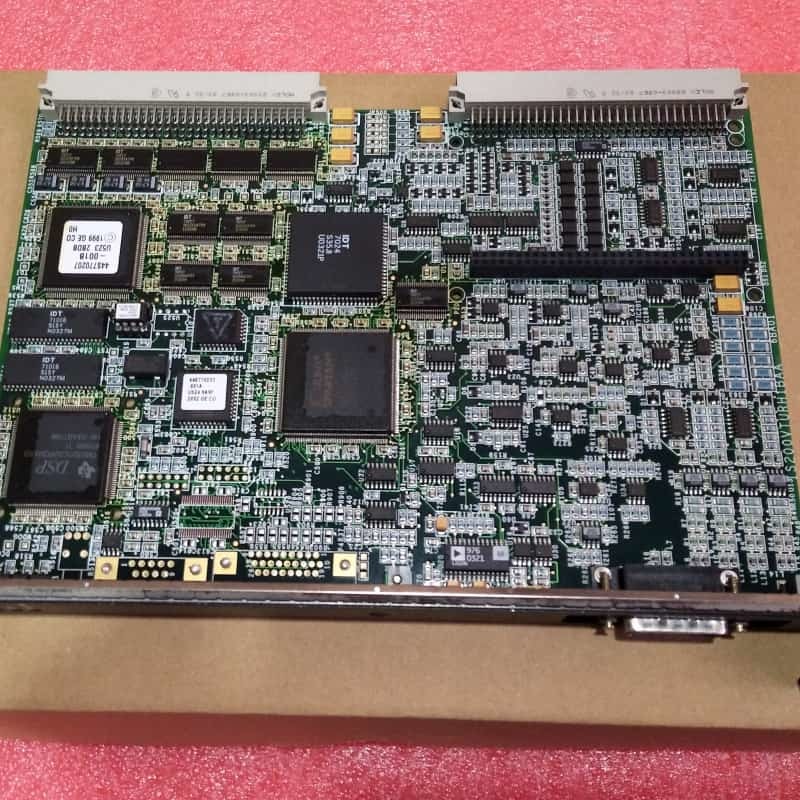

GE IS200VTURH1BAA Mark VI Primary Trip Board
| Place of Origin | US |
|---|---|
| اسم العلامة التجارية | GE |
| Model Number | IS200VTURH1BAA |
| Minimum Order Quantity | 1pc |
| الأسعار | $3800 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
wechat: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| Name | GE IS200VTURH1BAA Turbine Specific Primary Trip Board | Product ID | IS200VTURH1BAA |
|---|---|---|---|
| Series | Mark VI | Function | Primary Trip Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| إبراز | GE Mark VI trip board,turbine control primary board,VTURH1BAA trip module,turbine control primary board,VTURH1BAA trip module |
||
منتوج وصف
GE IS200VTURH1BAA Turbine Specific Primary Trip Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200VTURH1BAA Turbine Specific Primary Trip Board |
| Product ID | IS200VTURH1BAA |
| Series | Mark VI |
| Function | Primary Trip Board |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200VTURH1BAA is a turbine-specific primary trip board in the Mark VI Speedtronic system, critical for gas, steam, and wind turbine safety and control.
Key Functions
- Oversees turbine speed measurement with primary overspeed protection
- Manages automatic generator synchronization
- Controls main breaker operation
- Monitors shaft voltage and current
- In gas turbines, manages 8 Geiger Mueller flame detectors linked to TRPG
Technical Features
- Safety & Protection: Measures speed for overspeed trips, controls 3 trip relays, and monitors flame detectors/shaft parameters to prevent hazards
- Synchronization: Enables auto/manual generator synchronization with voltage and speed checks, using relays for safe breaker closure
- Redundancy Support: Works in TMR and simplex setups, ensuring reliability via redundant trip mechanisms
- Versatile Monitoring: Integrates voltage sensors and flame detectors for gas turbine-specific safety
- Easy Installation: Mounts in VME racks with lever-seated connectors and captive screws; front-panel LEDs aid diagnostics
System Integration
Compatible with simplex and TMR systems, it controls 3 primary overspeed trip relays on TRPG, triggering emergency solenoids. It integrates generator/bus voltage sensors with 1,500V isolation, supporting 1,000ft wiring. Synchronization modes ensure safe breaker operation, with relays K25/K25A/K25P coordinating checks.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
