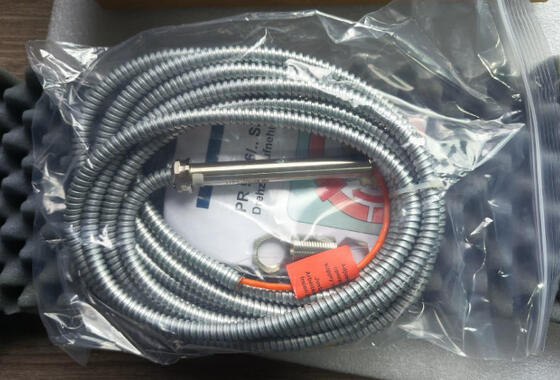

EPRO PR6423/013-020 8mm Eddy Current Sensor with M10x1 Thread and 6-Meter Armored Cable for Industrial Monitoring

The EPRO PR6423/013-020 is an eddy current sensor for non-contact measurement of radial/axial shaft displacement, position, eccentricity, and speed in critical turbomachinery such as turbines, compressors, gearboxes, pumps, and fans. It is equipped with M10x1 case threads (55 mm thread length), a 6‑meter armored cable terminated with a Lemo connector, and an included adapter plug. The armored cable provides robust mechanical protection, making the sensor well‑suited for reliable operation in harsh industrial monitoring environments.(Not include preprocessor)

PR 6423 / A B C  -  D E F

A Case Threads:                    D Adapter Plug:

0    M10x1                           0  With

1    3/8"-24 UNF-2A                 1  Without

B Armored Cable:
0         NO
1  YES

C Case Thread:                                               E Cable Length:
0  25mm         6  85mm                               0  4.0m

1  35mm         7  95mm                                  1  5.0m

2  45mm         8  105mm                             2 6.0m

3  55mm         9  115mm                             3     8.0m

4  65mm         E  155mm                              4  10.0m

5  75mm         H  195mm                           F Cable End:

R  Reverse Mount                                         0  Lemo*

                                                        1  Open
